Description

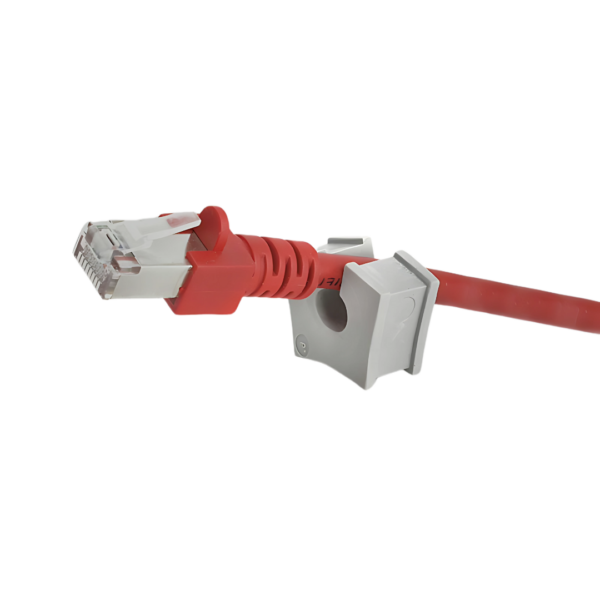

QT Cable Grommet for QUICK systems for cable diameters 1 – 15 mm / IP54

The QT range supports cable diameters from 1 to 15 mm. They are used with the following cable entry frames:

• KEL-QTA

QT grommets enable a sealing of the cables with IP54.

When using double or quadruple grommets the cable density of cable entry frames and cable glands can be greatly increased. The multi-hole model range QT is designed for cable diameters from 1 to 6 mm. icotek also offers special cable grommets for e.g. ASI lines.

When installing the QT grommets in multiple rows, the flat sides should be facing each other. This allows the flat sides to match up and provide a secure seal.

Advantages & benefits of the QT Cable Grommet for QUICK systems for cable diameters 1 – 15 mm / IP54

• Enable routing of pre-terminated cables through cable entry frames and split cable glands
• Available for a large range of cable diameters
• Greatly increased cable density when using double or quadruple grommets

*Different sizes and models available. Please refer to the downloadable data sheet and contact our sales team for further information.
