Description

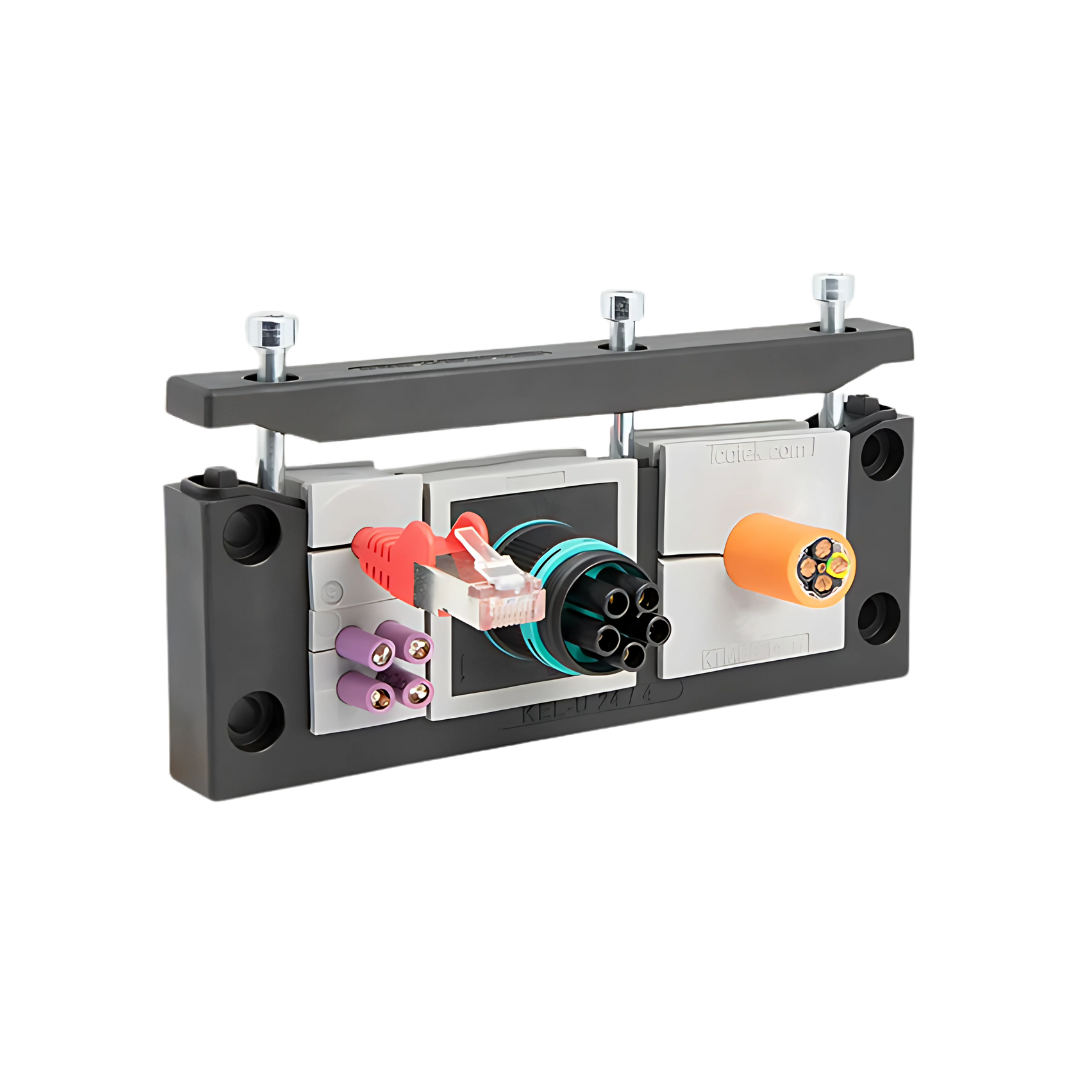

KEL-U Split cable entry frames for cables with connectors / IP54 / UL Type 12
Split cable entry system for routing cables with connectors providing an IP54 / UL Type 12 rating. Routing, sealing and providing strain relief for cable diameters from 1 to 35 mm.
The cable entry system is easy to install. Cable grommets are placed into compartments and are securely fixed to the frame during assembly.
The KEL-U frames match exactly the cut-out dimensions for 10-, 16- and 24-pin standard industrial connectors. Either a cut-out of 36 mm or 46 mm in height can be chosen depending on the cables being routed. The KEL-U-B frame matches the cut-out dimensions of 46 × 46 mm measuring instruments.
For tool-free assembly / disassembly of the cable entry frames the snap mounting frame KEL-SNAP can be used.
The single-row versions KEL-E are particularly suited for flat connectors. The small frames are ideal for applications with limited space.
A flat rubber gasket is included in the shipment.
