Description

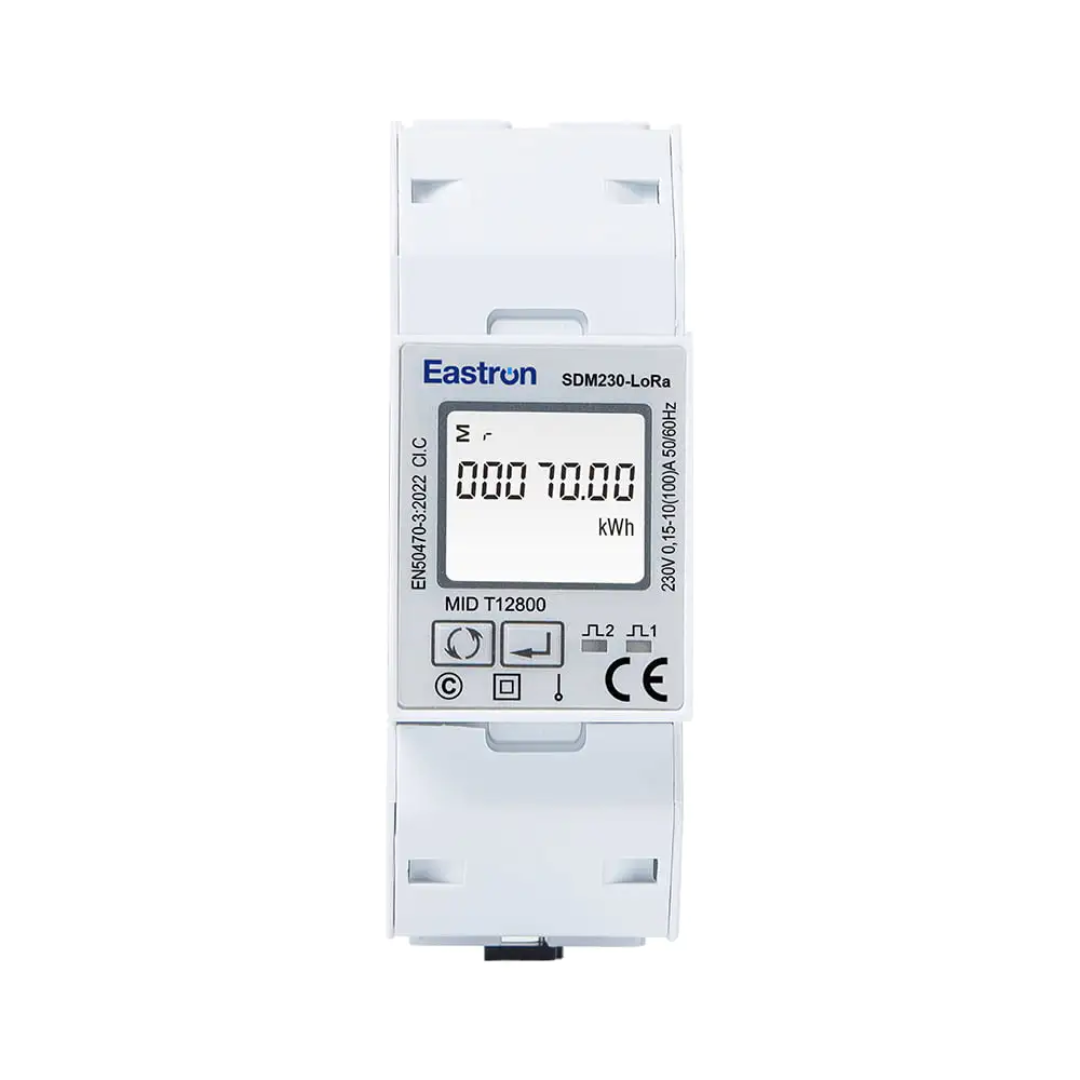

The Eastron SDM230-LoRaWAN Energy Meter is an advanced multi-function single phase energy monitoring solution, with a built-in LoraWAN module that wirelessly transmits data to any LoRaWAN gateway. The SDM230modbus has 15 measured parameters and 4 different kWh measurement modes which have been designed around the development of regeneration, such as solar and battery storage. The means the pulsed output can be configured for the following.
It can measure multi-parameters like active energy, reactive energy, current, voltage, power, power factor, frequency,etc. The meter support Max.65A direct connection. It also offers 2 pulse outputs. The communication equipped is standard LoraWAN communication, makes it a good solution for remote wireless metering in the long distance application.
Import +Export = Total kWh
Export – Import =Total kWh (Nett)
Import = Total kWh
Export = Total kWh
Highlights:
- MID Certified
- LoRaWAN EU868
- Class 1.0 accuracy
- Single phase or three phase network compatible
- two module DIN rail mounted
- Highly visible backlit display
- Simple menu navigation
- Built in Pulsed outputs, 1 x Fixed & 1 x Configurable
