Description

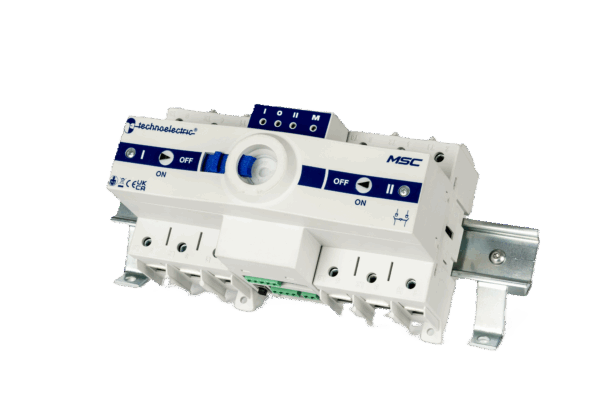

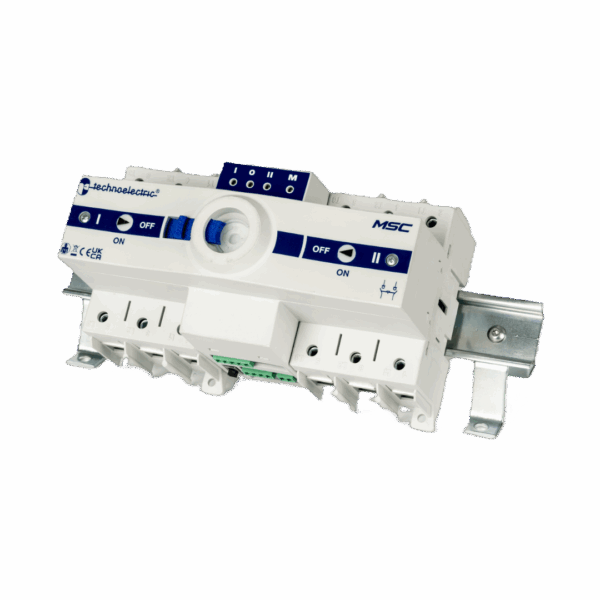

The most compact motorized changeover switch on the market!
17.9cm of footprint on the DIN rail, it can reach 160 in AC23A and 200 A in AC22A. Connectable cables: up to 70mm2, with optional connectors it can reach 95mm2.
Compact, powerful, and versatile, MSC is the perfect solution for industries requiring efficiency, adaptability, and safety in power distribution
The MSC series is designed for easy and safe remote power switching, which is essential in situations where a continuous power supply is crucial, such as in hospitals or data centres.
Overall dimensions (less than 18 cm on the DIN rail)
High making and breaking capacity
Available in 3 sizes (125A, 160A, 200A)
Suitable for cables till 70 mm2 (95 mm2 with adaptor)
Simple logic
UL Certified
Suitable for Naval Applications
Works with flat DIN rails
Works with aluminium cables
Although the automatic switching function allows for switching between different power sources without human intervention, manual operation is possible in any situation.
