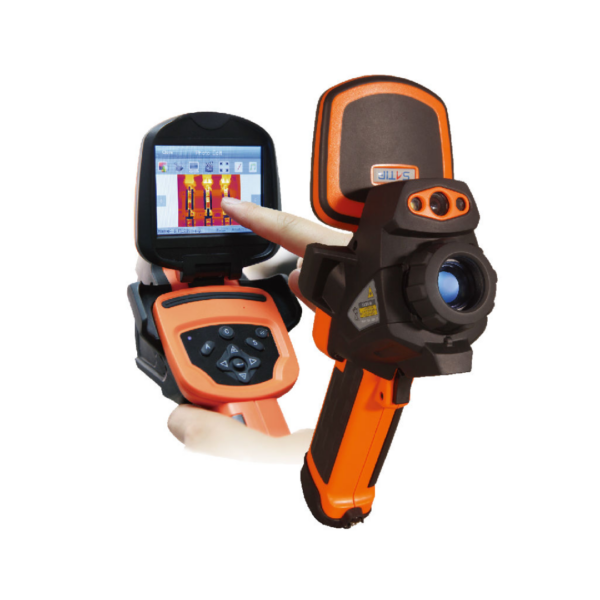

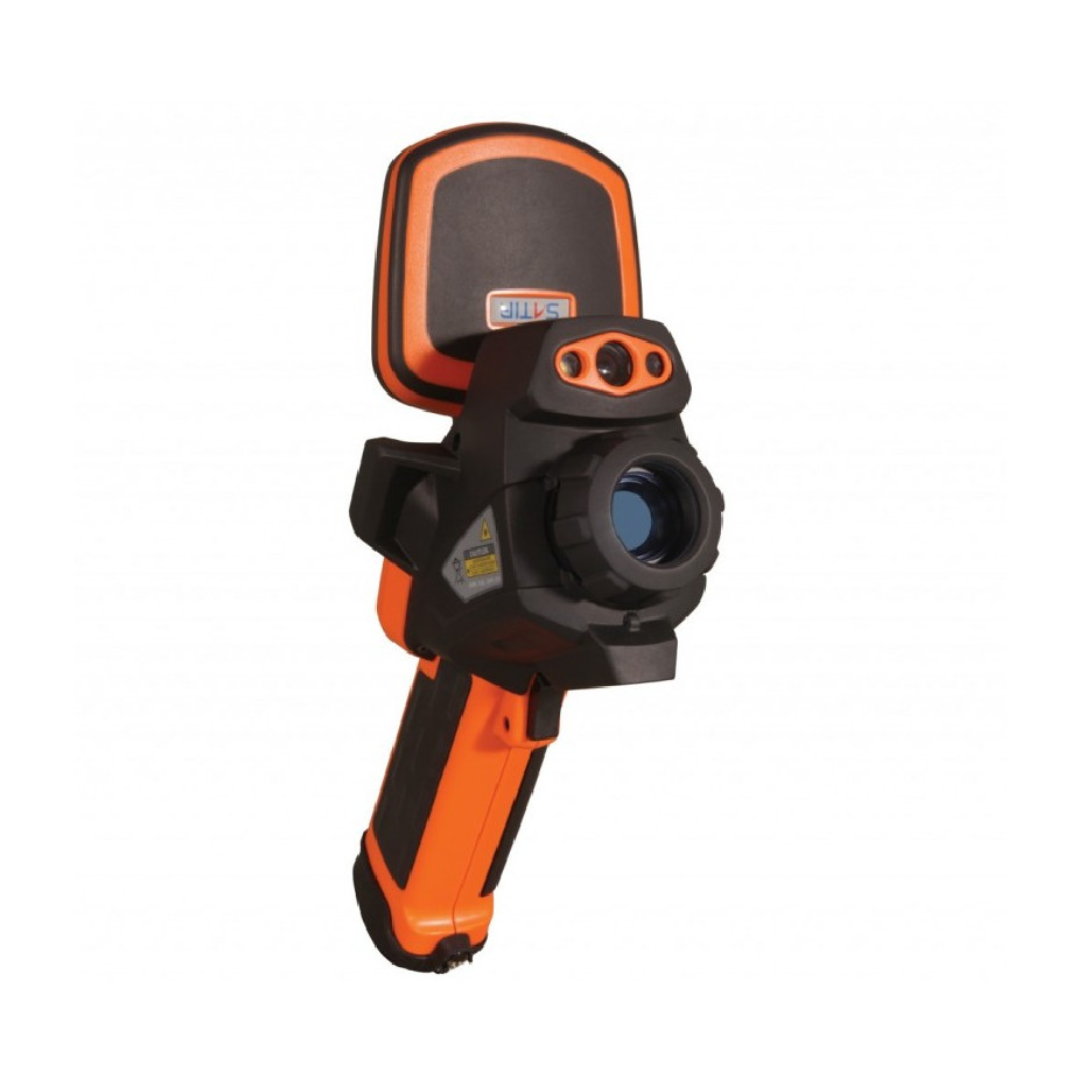

SATIR Hotfind-S Industrial Advance Level Thermal Imaging

The SATIR Hotfind-S Industrial Advance Level Thermal Imaging is a popular Mid-Level thermography cameras for a variety of reasons such as it’s high performance imaging software can deliver excellent quality images for a wide range of industrial applications.

Features:

• 384×288 IR detector which generates 110592 pixels which delivers a clear, crisp detailed image to the user.
• Three imaging modes: IR, Digital (CCD) and Duo Vision which overlays the thermal image with the digital image.
• Two methods of control: keypad and touch screen. The user can control the camera depending on their preference and application.
• Extendable temperature range. Upon request it can be extended from the standard -20 to 650℃, up to +1500℃, which means the HotFind series can also be widely used in high temperature applications.

Users can add voice annotation to the thermal images via a Bluetooth headset. The recording can be saved with the thermal image and can be played back in the headset or using the SatIrReport software.

The analysis functions that come with the Hotfind-S include 8 movable spots, auto hot/cold spot, profile, 2 lines, 5 area boxes, isotherm.

HotFind series adopts NTSC (60Hz) or PAL (50Hz) composite video output. The thermal images are displayed in real time which guarantees complete and vivid thermal imaging with no ghosting.

Full radiometric thermal data can be transferred via the USB connection to a PC in real-time for analysis and reporting in the ReportIR USB software.

The Hotfind-S can be mounted on a tripod with the standard 1/4”_20 mounting socket. Add the optional AC adapter and the user can use the HotFind-S for continuous monitoring.

The SATIR Hotfind-S has optional lenses available that increase the image quality and Field of View (FOV), currently the following lenses are available on request, 7°, 12°, 48°

When buying the SATIR Hotfind-S you will receive a battery charger, batteries, sunshield, TF card, Calibration Cert, Bluetooth headset and USB Cable. If you need additional accessories in the future these can be brought from the SATIR Store.

Features:

• 384×288 IR Detector
• IR/CCD/Duo-vision/Duo-vision Plus/PiP
• Dual Control via Touch Screen or Keypad
• 3.5” LCD Tilting Screen
• Bluetooth
• Extendable temperature range
• Measurement Tools
• Available Optional Lenses/Min. Focus Distance: 7×5.25°/5m/0.32mrad，12×9°/0.5m/0.55mrad，24×18°/0.15m/1.1mrad, 48×36°/0.1m/2.2mrad
